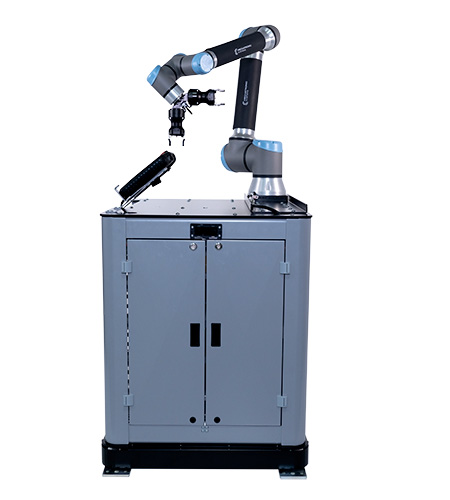

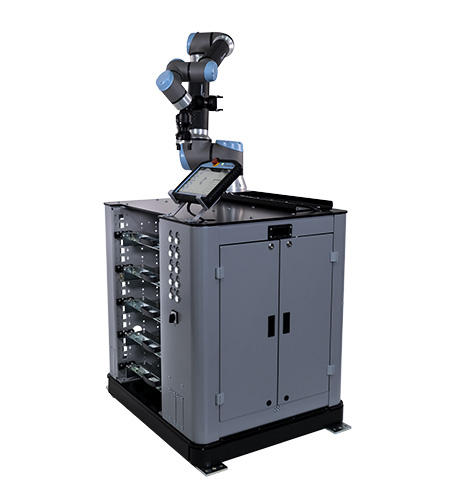

EasyTend-Charlie
Equip your machine or machining center with an EasyTend to free up employees for more valuable tasks.
- Pre-engineered design provides a cost effective solution to save you time during construction, assembly, and commissioning.

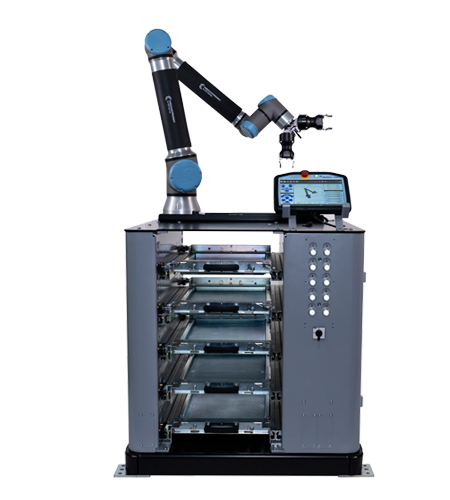

- Up to 10 drawers to hold massive amount of blanks. Operator loads on one side, robot unloads from the other.

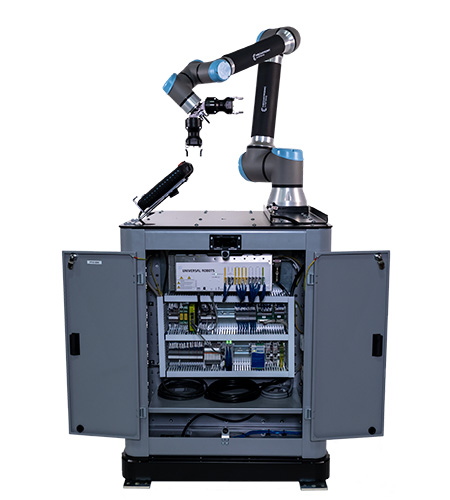

- Includes our EasyCTRL so it’s ready to interface with external IO and safety systems.
- Includes our EasyCare package so we can assist your team remotely
- Optional Installation and Tray / Gripper Tooling, are available
Related Products
| Pneumatic Valves | 4- 5/2 Single Solenoid |
| Pneumatic Filter, Regulator | 1- 1/4” Ports |
| Blow-Off Nozzles | 2- Vortec 1201 |
| Cable Sleeves | 1- Hook & Loop Set |
| LED Stack Light | 1- Red, Amber, Green |
| Wiring Disconnect, 16 pin | 1- Disconnect & 50 ft cable |
| MS-ET-C5-R3-P1-V1-S0-G21-EC2-X1 | Charlie 5-drawer |
| MS-ET-C10-R3-P1-V1-S0-G21-EC2-X1 | Charlie 10-drawer |
| PART # BREAKDOWN | |
| MS-ET | Mechatronic Systems EasyTend |
| -C5 | Model (Charlie, 5 drawer) |
| -R3 | Robot – UR10e |
| -P1 | Teach Pendant, Standard |
| -V1 | Power Input: 115VAC, Single Phase |
| -S0 | Safety Radar not included |
| -G21 | Dual Electric Parallel Gripper (CoPilot) |
| -EC2 | EasyCare Hardware |
| -X1 | English |
| FLIER | EasyTend-Charlie | Download |
