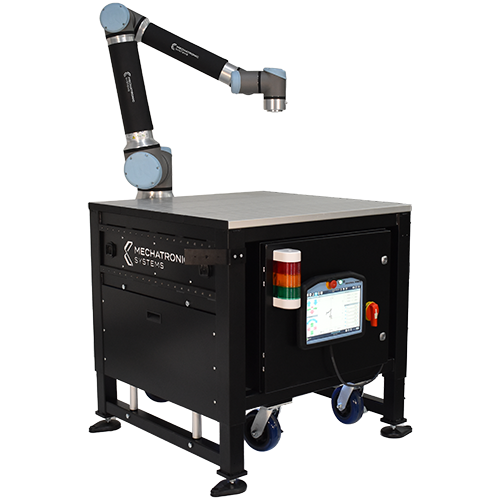

EasyTend – Press Brake, Compact
This compact version is a perfect for handling smaller sheets and creating inbound buffers on the top surface and extensions. This format also enables customized material handling solutions for long sheets or tubes.
Includes:
- Welded steel design provides rigid base for mounting robot
- Lift system allows wheels to be lowered for quick redeployment
- The surface height can be adjusted from 850mm – 1000mm
- 880mm x 880mm extruded work surface provides maximum flexibility for any application.
- Optional Equipment:
- End-Of-Arm-Tool (EOAT) Kits
- Pneumatics Kit
- Vacuum Kit
- Safety Laser Kit

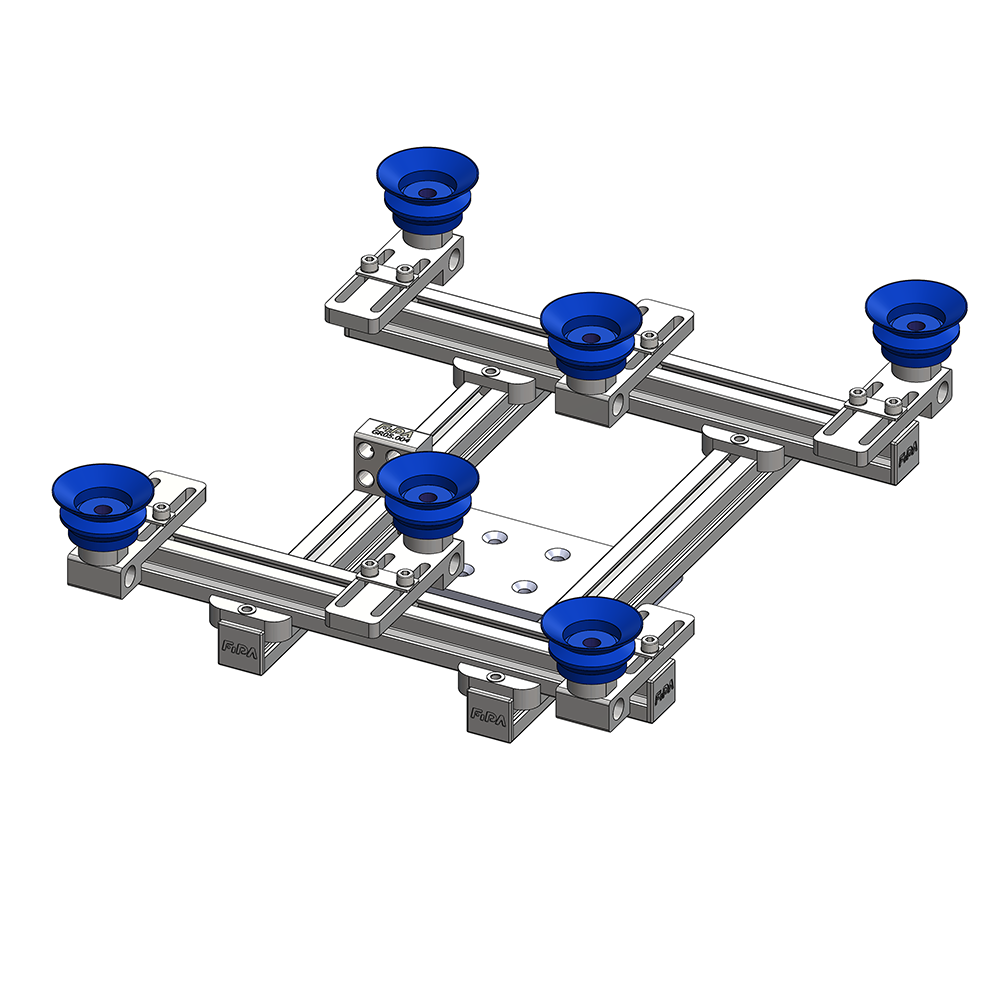

- End-Of-Arm-Tool Kits provide the flexibility to handle almost any part
- Cobot sizes 12.5 kg, 20 kg, 30 kg match up perfectly with most press brake sizes
Related Products
| Standard Models | Part # Breakdown |
| MS-EB-R3-P2-V1-S0-X1 (UR10e) | MS-EB Mechatronic Systems EasyBase Pedestal |
| MS-EB-R5-P2-V1-S0-X1 (UR20) | -R3 UR10e Robot |
| MS-EB-R6-P2-V1-S0-X1 (UR30) | -P2 Teach Pendant, 3PE |
| -V1 Power Input: 115VAC, Single Phase | |
| MS-EB-R1-P1-V1-S0-X1 (UR3e) | -S0 Safety Sensors not included |
| MS-EB-R1-P1-V1-S0-X1 (UR5e) | -S0 Safety Radar Controller not included |
| -X1 English |
| Optional Equipment | Description |

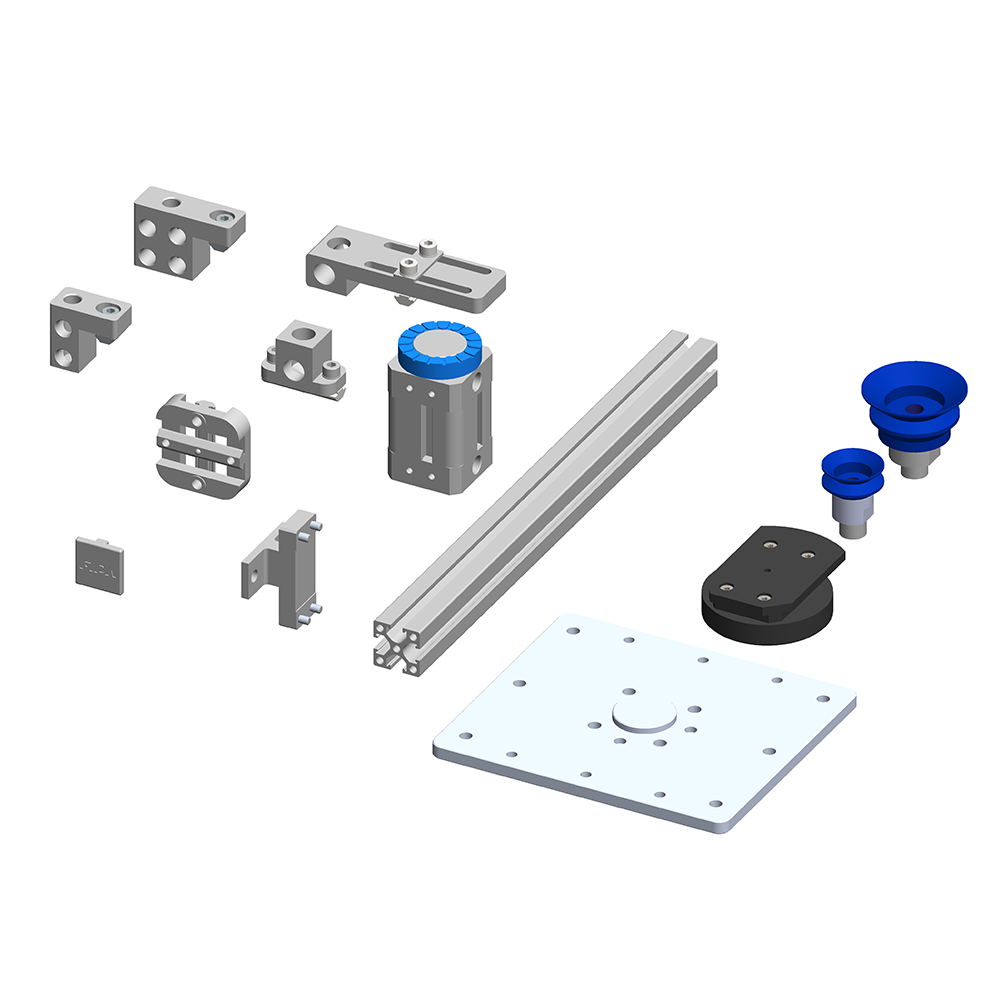

| MS-ETPB-TK03 | End-Of-Arm-Tool Kit #3, Vacuum Cups & Magnetic Grippers included. (Requires Pneumatic & Vacuum Kit) |
| MS-EB-EXT-S-E-90 | Extension Kit 90°, 880x440mm, Extrusions |
| MS-EB-EXT-S-E-135 | Extension Kit 135°, 880x440mm, Extrusions |
| MS-EB-EXT-S-G-90 | Extension Kit 90°, 880x440mm, Sheet Metal Grid |
| MS-EB-EXT-S-G-135 | Extension Kit 135°, 880x440mm, Sheet Metal Grid |
| MS-EB-SK02 | Dual Laser Scanner Kit |
| MS-EB-PK-4V | Pneumatics Kit, (4x) Valves, Air Prep Assembly |
| MS-EB-VK-2G | Vacuum Generator Kit (2x) |
| Flier | EasyTend Flexible Cobot System | Download |
